    Combination Crusher

    Get Quote


    Combination Crusher

    • Simple structure, low cost, little abrasion
    • High reduction ratio and low energy consumption
    • Low noise and little dust pollution
    • Long service life, reliable operation
    A Brief Overview:
    Combination crusher, also known as compound crusher, is ideally suitable for primary and secondary crushing with low power consumption and easy maintenance.

    A Brief Introduction to Combination Crusher

    Combination crusher, also known as compound crusher, is ideally suitable for primary and secondary crushing with low power consumption and easy maintenance. It is widely used in many fields to crush raw materials with high-hardness and medium-hardness, such as clinker in cement plants, metallurgy, building materials, road construction, chemical engineering & silicate. Every component of the machine has been carefully designed to achieve superior quality and performance.

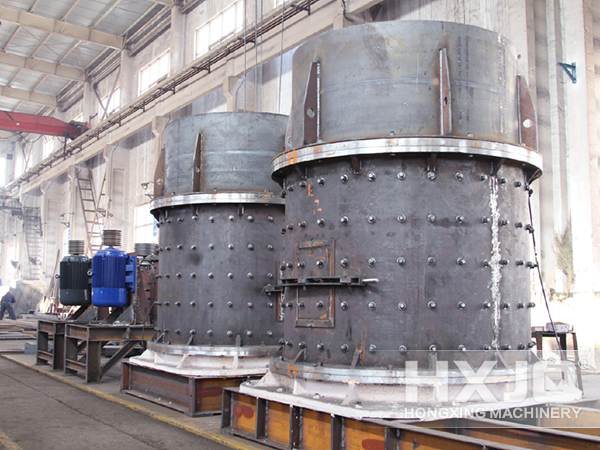

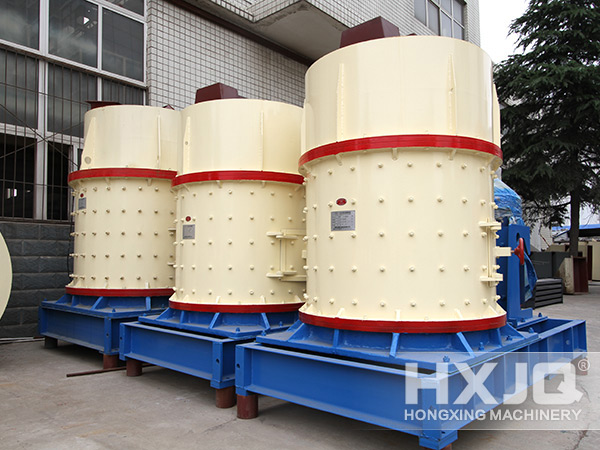

    Combination Crusher

    Working Principle of Compound Crusher

    Raw materials are fed from the top of the combination crusher, and fall into the rotating impellers at a high speed to be crushed. As other materials simultaneously fall around the rotating impellers, the materials falling from different directions join together and are crushed mutually. The materials are crushed repeatedly in and around the impellers of the combination crusher, and are finally discharged from beneath the machine. Via a closed circuit, controlled by the screening equipment, the products get the required final size.

    Features of Compound Cone Crusher

    1. Simple structure, low cost, little abrasion

    2. High reduction ratio and low energy consumption

    3. Low noise and little dust pollution

    4. Long service life

    5. Reliable operation

    6. Easy maintenance

    Professional Manufacturer

    Hongxing Mining Machinery Co., Ltd. is a professional mining equipment manufacturer in China. We provide a full range of mining equipment with various specifications. Our products are warmly welcomed both at home and abroad due to high quality, low prices and our quality services. We welcome all the current and potential customers to visit our company and choose the most suitable products.

    Model
    800
    1000
    1250
    1500
    1750
    Rotor diameter (mm)
    650
    800
    1000
    1250
    1560
    Cylinder height(mm)
    800
    850
    850
    1000
    1410
    Main shaft rotation speed (r/min)
    1350
    970
    740
    650
    600
    Feeding size(mm)
    50
    70
    100
    100
    100
    Discharging size (mm)
    0-5
    0-5
    0-5
    0-5
    0-5
    Processing capacity (t/h)
    5-15
    10-30
    20-60
    30-80
    40-100
    Motor
    Power(kw)
    30
    55
    75
    110
    132
    Rotation speed
    1440
    1440
    750
    750
    750
    Dimensions(L×W×H)(mm)
    2200×860×1980
    2700×1160×2000
    2800×1400×2730
    3100×1900×2300
    3350×2100×2800
    Total weight (t)
    2.3
    4.5
    9.73
    18.1
    26.61
