    Flotation Machine

    Home Home products Ore dressing machine Flotation Machine

    Flotation Machine

    Get Quote

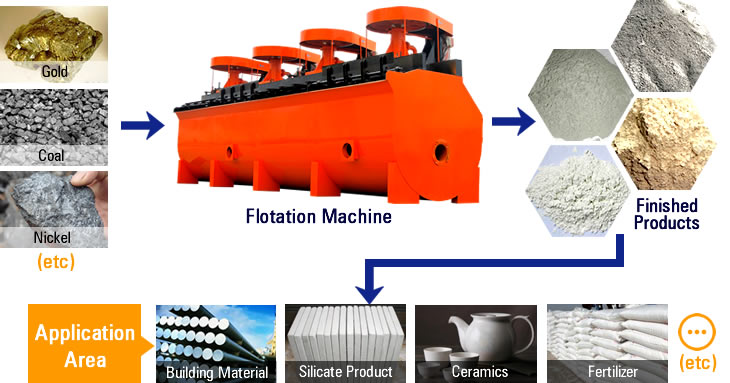

    Flotation Machine

    • High efficiency
    • Low energy consumption
    • High-capacity
    • Low cost
    A Brief Overview:
    The flotation separation process is completed by the jaw crusher, the ball mill, the classifier, the magnetic separator, the flotation machine, the concentrator and the dryer with the help of the elevator and the conveyor.

    Main Equipment in Flotation Separation Process

    The flotation separation process is completed by the jaw crusher, the ball mill, the classifier, the magnetic separator, the flotation machine, the concentrator and the dryer. This production process has the merits of high efficiency, low energy consumption, high-capacity and low cost.

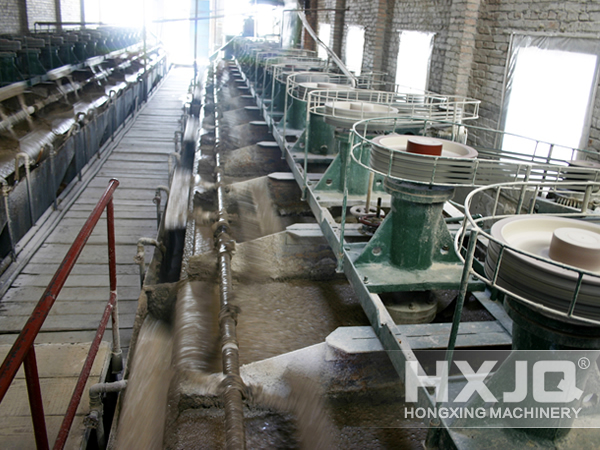

    Flotation machine

    The Processes

    After preliminary crushing by the jaw crusher, the ores will be sent to the ball mill by the lifting device and the feeder for further crushing and grinding. Afterwards, they come to the next process: classifying. According to the principle that different particle sizes with different proportion have certain terminal velocity, the fine particles float on the water and overflow out while the coarse particles sink to the bottom. Thus, the materials are separated and washed clean.

    When they pass through the magnet separator, they are further separated under different magnetic force and mechanical force due to respective susceptibility.

    After initial separation by the magnet separator, the particles will be put in the flotation machine. Different minerals are added different drugs to be separated from others. Since the separated minerals contain large amount of water, they should be concentrated by the concentrator and then dried by the dryer. At last, the dry mineral powders can be obtained.

    Technical Parameters of BF Flotation Machine

    Model Trough cubage
    (m³)
    Inside dimensions
    (L×W×H)
    (m)
    Air suction amount
    (m³/㎡·min)
    Power
    (kw)
    Motor model Processing capacity
    (m³/min)
    Single trough weight
    (kg)
    BF-0.37 0.37 0.74×0.74×0.75 0.9~1.05 1.5 Y90L-4 0.2~0.4 470
    BF-0.65 0.65 0.85×0.95×0.9 0.9~1.10 3.0 Y132S-6 0.3~0.7 932
    BF-1.2 1.2 1.05×1.15×1.10 1.0~1.10 5.5
    4.0
    Y132M2-6
    Y132M1-6
    0.6~1.2 1370
    BF-2.0 2.0 1.40×1.45×1.12 1.0~1.10 7.5 Y160M-6 1.0~2.0 1750
    BF-2.8 2.8 1.65×1.65×1.15 0.9~1.10 11 Y180L-8 1.4~3.0 2130
    BF-4.0 4.0 1.9×2.0×1.2 0.9~1.10 15 Y200L-8 2~4 2585
    BF-6.0 6.0 2.2×2.35×1.3 0.9~1.10 18.5 Y225S-8 3~6 3300
    BF-8.0 8.0 2.25×2.85×1.4 0.9~1.10 22
    30
    Y225M-8
    Y250M-8
    4~8 4130
    BF-10 10 2.25×2.85×1.7 0.9~1.10 22
    30
    Y225M-8
    Y250M-8
    5~10 4660
    BF-16 16 2.85×3.8×1.7 0.9~1.10 37
    45
    Y280S-8
    Y280M-8
    8~16 8320
    BF-20 20 2.85×3.8×2.0 0.9~1.10 37
    45
    Y280S-8
    Y280M-8
    10~20 8670
    BF-24 24 3.15×4.15×2.0 0.9~1.10 45 Y280M-8 12~24 8970

    Technical Parameters of SF Flotation Machine

    Model
    SF0.37
    SF0.7
    SF1.2
    SF2.8
    SF4
    SF8
    Trough capacity(m³)
    0.37
    0.7
    1.2
    2.8
    4
    8
    Impeller diameter(mm)
    300
    350
    450
    550
    650
    T60
    Production capacity (m³/min)
    0.2-0.4
    0.3-0.9
    0.6-1.2
    1.5-3.5
    0.5-4
    4-8
    Impeller rotation speed (r/min)
    352
    400
    312
    268
    238
    191
    Motor
    Model
    ①Y90L-4
    ①Y100L2-4
    ①Y132M2-6
    ①Y160L-6
    ①Y180L-6
    ①Y250M-8
    ②Y90S-4
    ②Y90S-4
    ②Y90S-4
    ②Y90S-4
    ②Y90L-4
    ②Y100L-6
    Power(kw)
    ①1.5
    ①3
    ①5.5
    ①11
    ①15
    ①30
    ②1.1
    ②1.1
    ②1.1
    ②1.1
    ②1.5
    ②1.5
    Dimensions(mm)
    700×700×750
    900×820×950
    1100×1100×1100
    1700×1600×1150
    1850×2050×1200
    2200×2900×1400
    Single trough weight(kg)
    468
    600
    1373
    2338
    2660
    4486

    Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
