    Hammer Crusher

    Hammer Crusher

    Get Quote


    Hammer Crusher

    • High crushing ratio, even particle size
    • Strong production ability
    • Low energy consumption
    • Simple structure, light weight
    A Brief Overview:
    The hammer crusher can not only be used in the stone crushing line and sand making line, but also be used like the cone crusher in the ores dressing line.

    Introduction to the Hammer Crusher

    Hammer Crusher

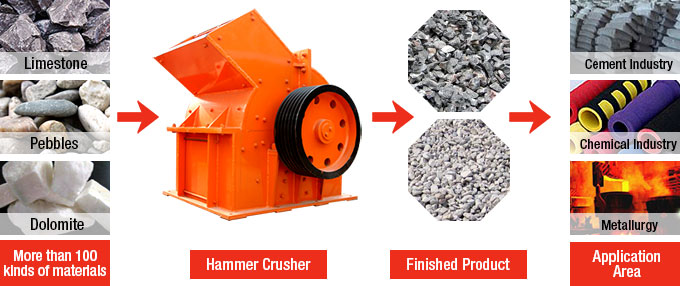

    The hammer crusher, also called the hammer breaker, is used to crush all kinds of medium hard and brittle materials of little-abrasion, whose compressive strength is no more than 100MPa and moisture content less than 15%, such as coal, salt, chalk, gypsum, tile and limestone. It is also used to crush fiber structure, cracked wood of strong elasticity and toughness, paper, or the waste of cracked asbestos cement to recycle the asbestos fiber and so on. Moreover, the hammer crusher can not only be used in the crushing line and the sand making line, but also be used like the cone crusher in the ores dressing line.

    Features of the Hammer Crusher

    1. High crushing ratio ranging from 10 to 25 or even higher to 50

    2. Strong production ability

    3. Even particle size

    4. Low energy consumption

    5. Simple structure

    6. Light weight

    7. Easy operation and repair

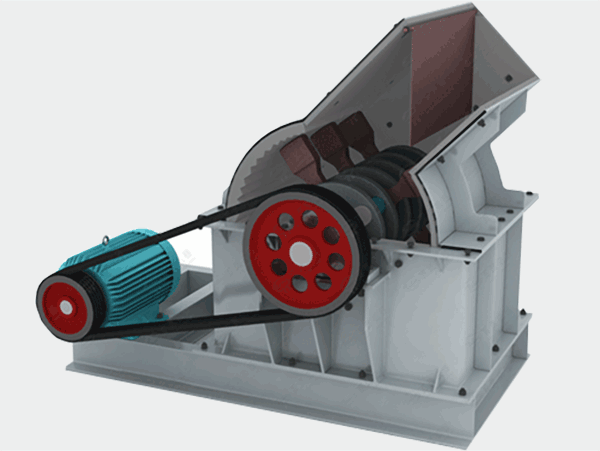

    Working Principle of the Hammer Crusher

    The main components of the hammer crusher are rotors. The rotors consist of the main axis, disk, pin axis and hammers. The rotors rotate in the crushing cavity driven by the engine. The materials fall from the upper feed port and are crushed with the impacting, hitting, cutting and polishing of the high-speed rotating hammer. The sieve plate is under the rotors. The materials smaller than the size of the sieve pit are discharged from the sieve plate. Otherwise, the materials will stay on the sieve and are abraded and hit by the hammer constantly.

    Structure of Hammer Crusher

    The single rotor hammer crusher mainly consists of the box, disk, axes, hammers, grates, the adjusting frame and the coupling. The housing of the hammer crusher is a box made of steel plate, which can be divided into the upper part and the lower part along the center of the axis. The two parts are connected by the bolts. The feeding port is above the housing. To avoid abrasion and distortion of the inner wall of the box under the impact of the materials, protective lining boards are installed in the housing of the hammer crusher. There are triangle type disk and circle type disk. Since the edges of the triangle type are vulnerable to abrasion, If not found in time, the hammers will fall down, resulting in a less durable life than the circle type. There are 6 mandrels on the disk, by which the hammers are staggeredly installed on the disk. When the rotor rotates fast, the materials are crushed by the hammer under gravity. The rotating axis is supported by the axes on the ends and fastened with bolts. Centered on rotating axis, the grates rank on the grate frame. The quill shaft is arranged with two eccentric shafts under the box. The handles along the sides of the machine form an angle for the eccentric and the grate frame can be raised up or lowered down, which can adjust the pace between the hammer and the grates, and then the desired granularity can be obtained. When adjusting the machine, you needn't stop the operation.

    Professional Hammer Crushers Manufacturer in Zhengzhou

    Henan Hongxing Mining Machinery Co., Ltd. has been manufacturing hammer crushers for many years. The machines are available in both dry type and wet type crushers. Based on customers' needs, the grate space can be adjusted.

    Specifications
    Feeding Size
    (mm)
    Discharging size
    (mm)
    Capacity
    (m³/h)
    Motor power
    (kw)
    Total weight
    (t)
    Dimensions
    (L×W×H)
    (mm)
    PCΦ400×300
    ≤200
    ≤25
    5-10
    11
    0.8
    900×670×860
    PCΦ600×400
    ≤250
    ≤30
    10-22
    22
    2.26
    1200×1050×1200
    PCΦ800×600
    ≤250
    ≤35
    18-40
    55
    4.8
    1310×1180×1310
    PCΦ1000×800
    ≤350
    ≤35
    25-50
    75
    5.9
    1600×1390×1575
    PCΦ1000×1000
    ≤350
    ≤35
    30-55
    90
    8
    1800×1590×1775
    PCΦ1250×1250
    ≤350
    ≤35
    35-65
    132
    14
    2060×1600×1890
    PCΦ1400×1400
    ≤350
    ≤35
    50-100
    280
    32
    2365×1870×2220
    PCΦ1600×1600
    ≤350
    ≤35
    100-150
    480
    37.5
    3050×2850×2800

    Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
