    Vibrating Feeder

    Vibrating Feeder

    Vibrating Feeder

    • Simple structure
    • Reliability
    • Easy operation
    Overview

    Brief Introduction

    Vibrating feeder is a kind of linear direction feeding equipment, and it is also called vibratory feeder. It features smooth vibrating, reliable operation, long service life and being suitable for feeding and it is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

    Characteristics of Feed Grizzly

    Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy adjustment, simple structure, easy installation, light weight, small volume, simple maintenance.

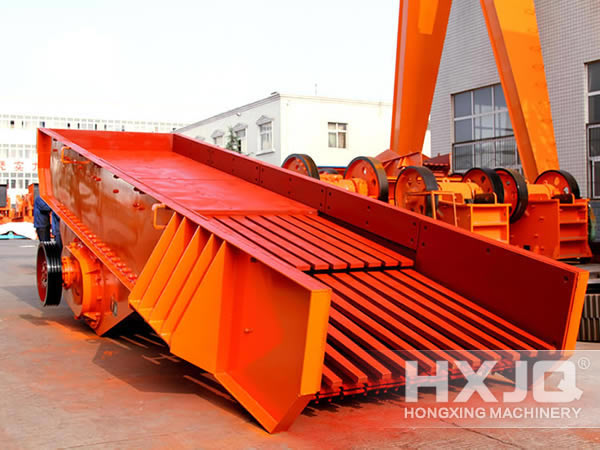

    Vibrating grizzly feeder (feed grizzly) is used in extraction and conveyance of materials with very large size from storage bins and hoppers, and is conveyed to downstream crushers, while screening the materials. Vibrating grizzly feeder is used in feeding calcareous calcium containing material with a size up to 1,000mm at 600m3 per hour; also it is used for the separation of fines from primary feeding or secondary feeding to the crushing plant and is meant for heavy duty applications.

    Ore Vibrating Feeder

    Ore vibrating feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, thus enhancing crusher capacity. When operating, the ore vibrating feeder can send massive and granular materials to the receiving device evenly, regularly and continuously. In the sand making production line, its even and continuous feeding helps avoid feeding-hole blocking. It can also roughly screen the materials.

    China vibrating feeder supplier: HXJQ feeder series are designed particularly for continuous use with any hard and abrasive materials. They combine a robust frame design with high feeding capacity and a limited overall height.

    Technical Data

    Model Max.
    Feeding
    Size
    (mm)
    Processing
    Capacity
    (t/h)
    Motor
    Power
    (kw)
    Obliquity
    of material
    trough
    (°)
    Trough
    size
    (mm)
    Dimensions
    (L×W×H)(mm)
    GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
    GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
    GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
    GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
    GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
    GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
    GZD-1500×3600 1050 450-1000 10×2 10-20 1500×3600 3900×2000×1750
    GZD-2000×3600 1200 550-1000 22×2 10-20 2000×3600 3600×2000×1750
    GZD-2500×5000 1500 650-1500 11 10-20 2500×5000 5000×2500×1800
    ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
    ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
    ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
    ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
    ZSW-600×150 800 500-900 30 0-10 6000×1500 6086×2662×1912
    ZSW-600×180 800 700-1500 37 0-10 6000×1800 6310×3262×2230
