    Stone Jaw Crusher

    Stone Jaw Crusher

    Stone Jaw Crusher

    • Simple structure, low operation costs
    • Energy saving, low noise and little dust
    • Deep crushing chamber without dead zone
    • High crushing ratio, uniform final product size
    Overview

    Stone jaw crusher is more advantageous compared with common crusher machine in coarse crushing operation. Thanks to its superior design, stone jaw crusher can carry out crushing operation in a variety of working conditions and always keep uniform discharging granularity. Jaw crusher machine is mainly used for primary and medium crushing of various ores and stones, which can crush materials with less than 320MPA compressive strength. The feeding size of jaw crusher machine is 150mm to 2100mm, which makes it be the preferred choice of primary crushing.

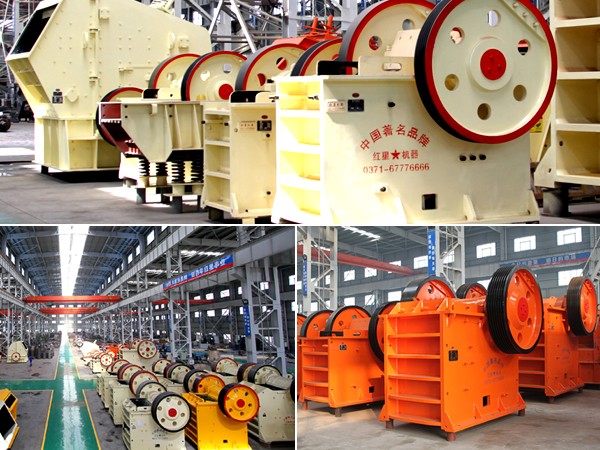

    stone jaw crusher

    Stone Jaw Crusher Types

    Stone jaw crusher can be divided into coarse jaw crusher and fine jaw crusher, which are more commonly known as PE jaw crusher and PEW jaw crusher, of which PE jaw crusher is also classified into large jaw crusher, medium jaw crusher and small jaw crusher. The models of large jaw crusher are PE-1600×2100, PE-1500×1800, PE-1200×1500, PE-1000×1200, PE-900×1200, etc. Medium jaw crusher has the models of PE-400×600, PE-500×750, PE-600×750 and PE-600×900. Models of small jaw crusher are PE-150×250, PE-200×300, PE-200×350 and PE-250×400. For specific information, you can refer to our technical data below.

    Stone Jaw Crusher Parts

    The stone jaw crusher is mainly composed of rack(fixed part), eccentric shaft(rotating part), crushing cavity(working part), safety device, adjusting device of discharge opening, etc.

    stone jaw crusher partstone jaw crusher partstone jaw crusher part

    stone jaw crusher partstone jaw crusherstone jaw crusher

    1. Rack(fixed part): A main component of jaw crusher for sale is rack. There are two manufacturing process and they are carbon steel casting and carbon steel welded steel rack.

    2. Rotating part: it consists of moving jaw, eccentric shaft, bearing, bearing pedestal, belt pulley, etc., which is the main part of powder transmission.

    3. Crushing cavity(working part): it consists of fixed jaw plate, moving jaw plate, side plate, back plate and so on, which is the main component of material crushing.

    4. Adjustment device: This device is applied to adjust the size of the discharge opening and control the discharge size of jaw crusher for sale.

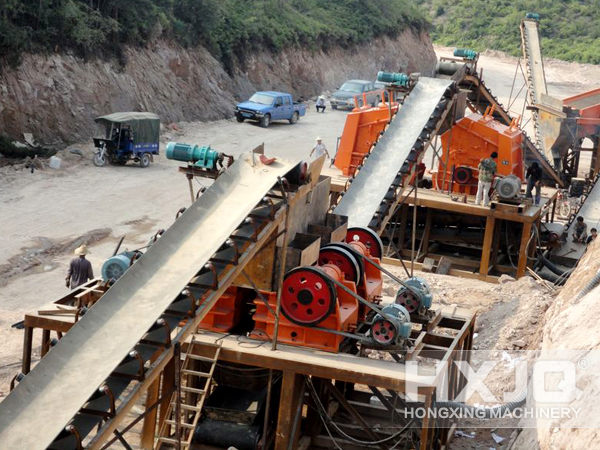

    Hongxing stone jaw crusher is widely used in mining, metallurgy, building materials, road, railway, water conservancy, chemical industry, etc. It can crush a variety of materials, including iron ore, limestone, basalt, phosphate ore, barite, coal, slag, coal gangue, quartz, granite, construction waste, aggregate, concrete, cement clinker, etc. Hence, stone jaw crusher can be also called limestone crusher, basalt crusher, granite crusher, aggregate crusher, slag crusher, coal gangue crusher, iron ore crusher, etc. As one professional jaw crusher manufacturer in China, Hongxing Machinery provides the most favorable jaw crusher price, welcome to contact with us!

    Technical Data

    Model
    Feed opening
    (mm)
    Max.feeding size
    (mm)
    Adjusting range of discharge opening
    (mm)
    Processing capacity
    (t/h)
    Rotation speed of eccentric shaft
    (r/min)
    Motor power
    (kw)
    Total weight
    (t)
    Dimensions
    (L×W×H)
    (mm)
    PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
    PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
    PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
    PE-250×400 250×400 210 20-60 5-20 300 6P   15 2.8 1300×1090×1270
    PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
    PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
    PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
    PE-600×900 600×900 500 65-160 50-180 250 6P   55 17 2190×2206×2300
    PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
    PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
    PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
    PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
    PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
    PE-900×1200 900×1200 750 95-165 220-450 200 8P   110 52 3380×2870×3330
    PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
    PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
    PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
    PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 8P   350-380 150.6 6210×4013×4716
    PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
    PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
    PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
    PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
    PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
